Low cost safety interior roller shutter doors rolling machine

  • Low cost safety interior roller shutter doors rolling machine
  • Low cost safety interior roller shutter doors rolling machine
  • Low cost safety interior roller shutter doors rolling machine
  • Low cost safety interior roller shutter doors rolling machine

Low cost safety interior roller shutter doors rolling machine

    Payment Type: L/C,T/T,D/P,Western Union,D/A
    Terms of Trade: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 45 Days
    Packaging: as customer's need
    Productivity: 15-50m/min
    Brand: zhongtuo
    Transportation: Ocean,Land,Air
    Place of Origin: China(mainland)
    Supply Ability: 30 sets/month
    Certificate: CE,ISO,SGS,IAF,CNAS.
    HS Code: 8455221000

Basic Info

Model No.: CNZT002

Product Description

Low cost safety interior roller shutter doors rolling machine

As shutter panels are more and more popular, it is widely used in the shop, hotel , bank etc building, Because it is easy open and closed , Also very easy to install, For fit this market, we manufactured the Shutter Door Roll Forming Machine.

Now there are many customer wants to try the market and invest on this project, but they do not want to invest too much money on it but has high requirements of the the finished products to cater market. Based on the needs, we developed Low cost safety interior roller shutter doors rolling machine. Take a random drawing profile for your reference:

shutter door drawing profile shutter door machine2

Low cost safety interior roller shutter doors rolling machine features:

1. Main features that it costs around 6000 USD and then you can get one high quality machine.

2. We take the batch processing technology, we can save the cost of the molds.

3.For the motor design, we use smaller but it can give power.

4. For the transmission, we use the best chain instead of gear and gearbox.

5.For the roller processing, we use CNC, to make sure the 100% accuracy.

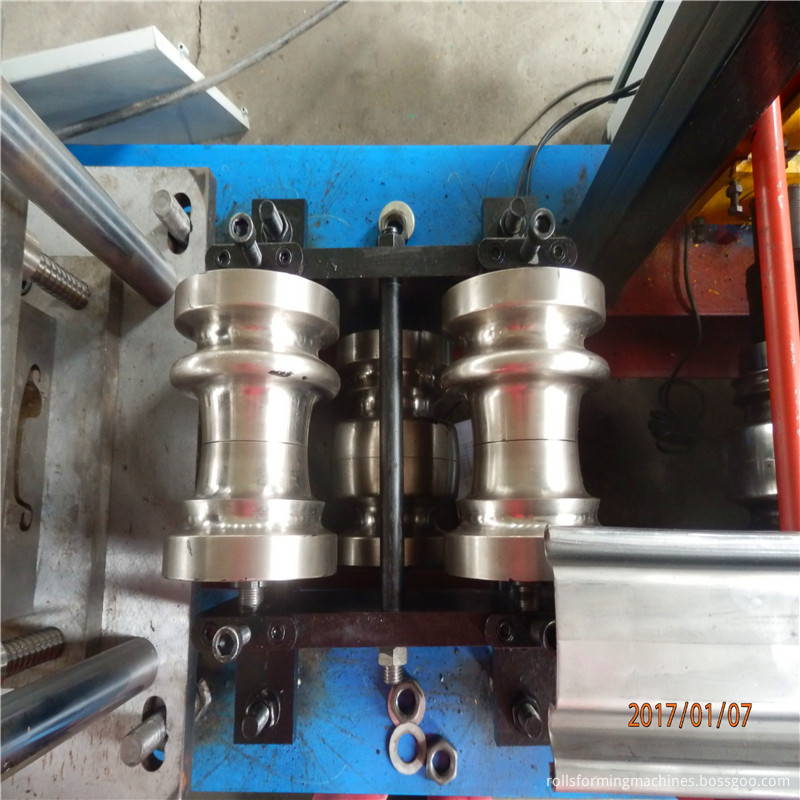

Here are some machine pictures for your reference:

lower cost shutter door machine4

Because the material for the shutter door sheet is metal, So when we closed the shutter door sheet, there is no lighting can pass by the shutter door sheet, in the house is very dark, for this we added one more punching machine between the deocoiler with the shutter door roll forming machine , let the punching machine punch the holes in the sheet then formed by our shutter door roll forming machine to shutter door sheet. By the way, the shutter door panel will have good effect of ventilating effect. Here are some finished product pictures for your reference.

shutter door machine7

Low cost safety interior roller shutter doors rolling machine parameters for your reference:

Description

Introduction

Note

Working efficiency with punching

25 m/min

Adjustable by customer

Thickness of Material

1.0 mm

Control system

PLC

Delta

Uncoiler system

3 Ton manual expansion

Forming by rolling

Roll 12 Roller station

Roller material

Gcr12MoV quenched

Shaft and the diameter of axle

45#Aluminium processing diameter of axle=50mm

Main part power

5.5kw

Hydraulic motor power

3kw

Hydraulic pressure

20Mpa

Scissor material

Gcr12MoV quenched

length tolerance

±1.0mm

voltage

380V, 50HZ,3 phase

Adjustable by customer

Driving Method

chain

lower cost shutter door machine3

lower cost shutter door machine1


For the rolling shutter door machine, if you want to know more information, please contact us at any time.
